DuoVent-AUS
[SPECIAL ORDER] High Capacity Air Vents with Manual Vent Feature, DN6

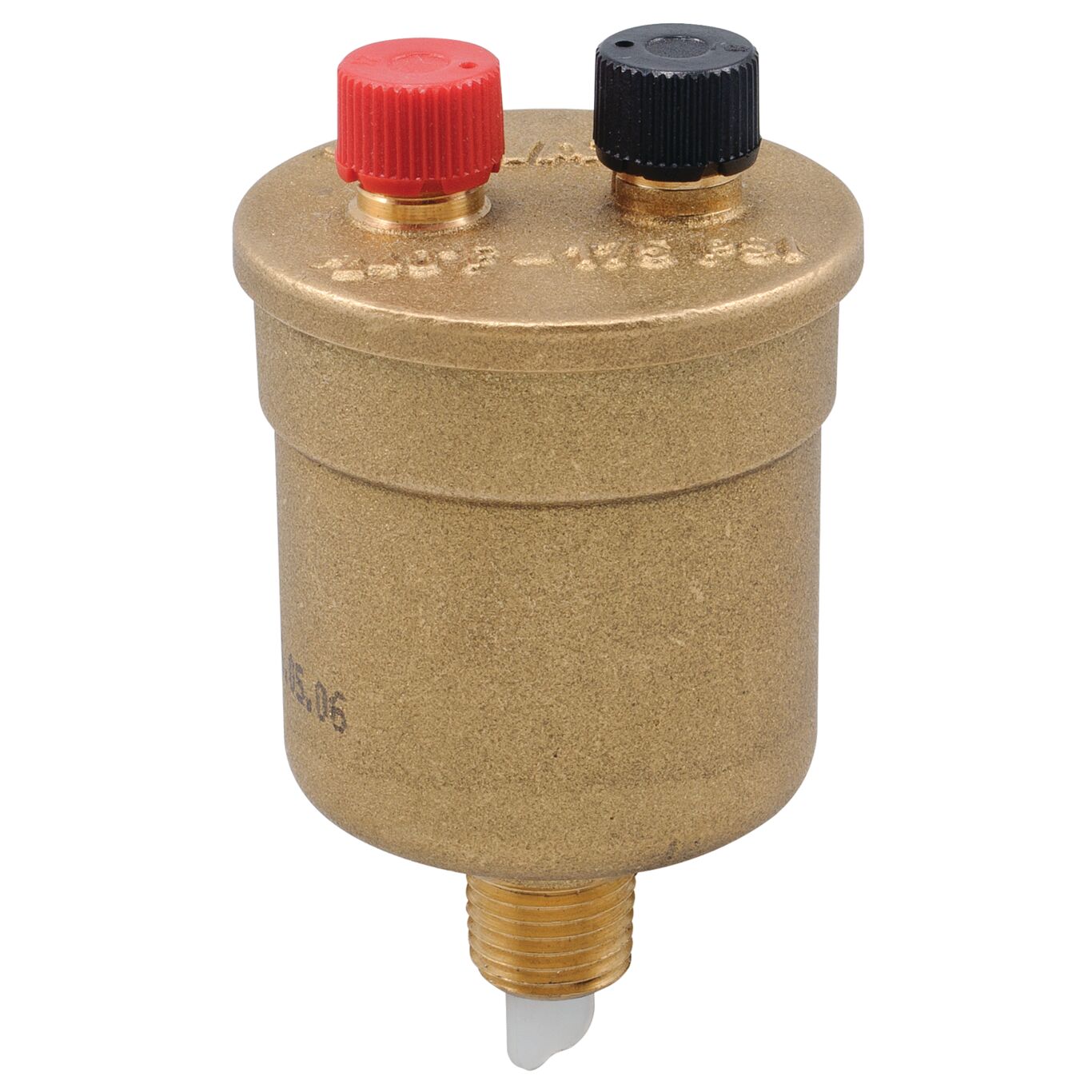

Series DuoVent-AUS high capacity air vents with manual vent feature are used in commercial and residential hydronic heating applications to provide automatic air venting for hot or cold water distribution systems. It consists of a brass body construction with female NPT connection, brass cover, air vent with silicone rubber seal, shutter, polyethylene float with valve plug, automatic vent with black cap, and manual vent with red cap. Series DuoVent-AUS has a high capacity and high temperature rating and is ideal for use with glycol systems or for use as an anti-vacuum device. Can be disassembled for inspection and cleaning. Maximum Pressure: 150psi (10 bar) Temperature Range: 33°F - 240°F (5°C - 116°C).
Features
- Air vent with silicone rubber seal
- Suitable for use with glycol systems
- Body and cover are brass construction
- Impurities do not usually affect function as maximum float line of water is always lower than the valve sea
- Float is high temperature resistant polyethylene
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific DuoVent-AUS
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or contact us. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
Watermark |
