TVA ABV

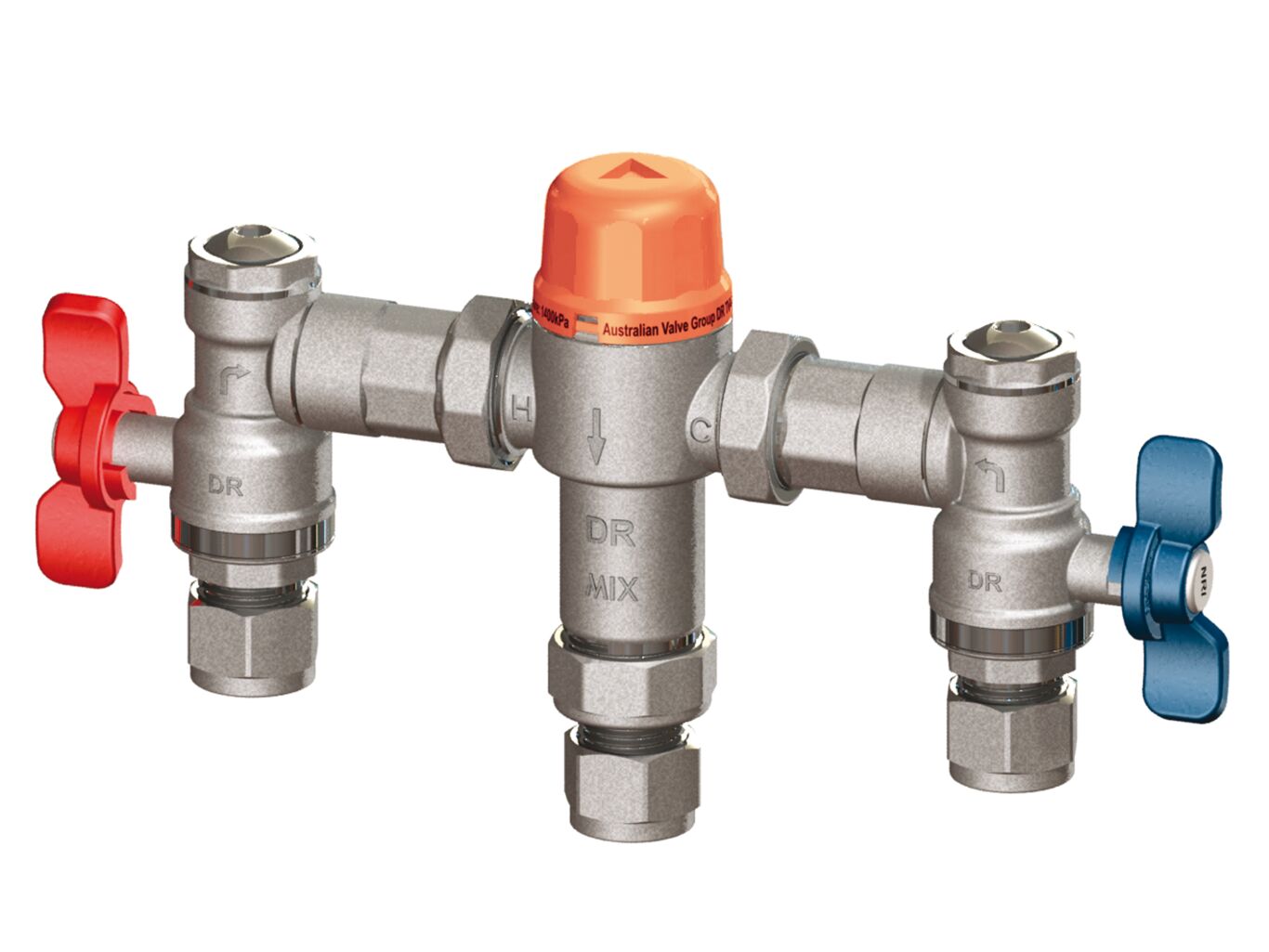

Tempering Valve with Right Angle Ball Valves
Designed for solar applications and continuous flow heaters. The TVA-ABV valves can also be used in all water heater applications as per TVA installation instructions. This tempering valve with right angle ball valves has been upgraded to include high-temperature components. It provides more accurate control ± 3°C from set temperature (to AS4032.2). Will supply 50°C mix with 55°C hot supply. The TVA-ABV valve has a forged DR bronze body, integral 60 mesh stainless steel line strainers, integral non return valves to enhance flow through the valve, stainless steel springs, and O-ring seal union connectors.
Features
- Will supply 50°C mix with 55°C hot supply
- Upgraded to include high-temperature components
- More accurate control: ± 3°C from set temperature (to AS4032.2
- Tamper proof adjustment
- Seasonal adjustments not required
- Forged DR bronze body
- Water Mark Certification – License No. 20137
- Special adjusting tool
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific TVA ABV
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or contact us. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| Watermark |
