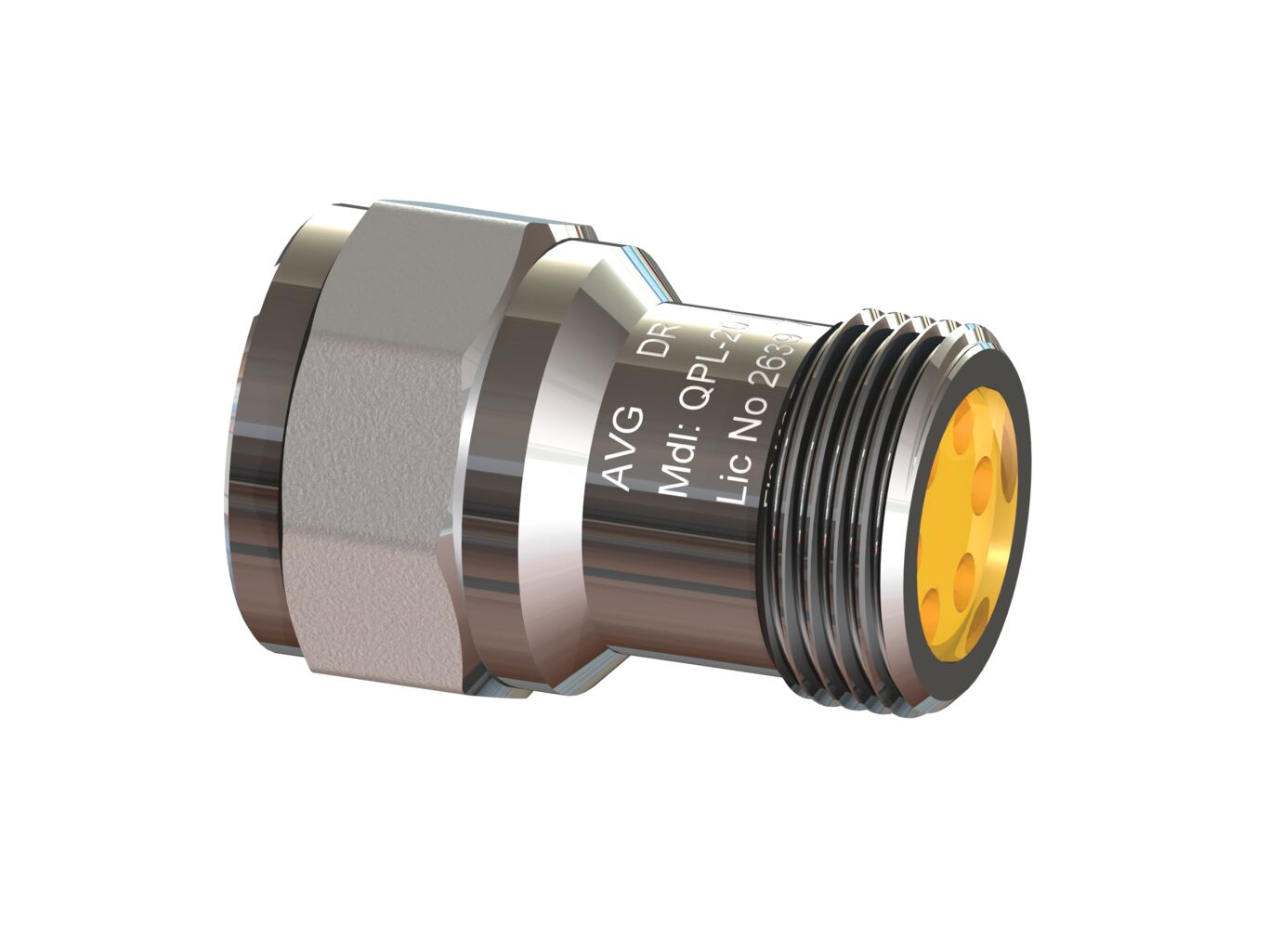

QPL-20
Noise Reduction Valve, 20mm
The QPL-20 quiet valve is designed to reduce the noise caused by high velocity water and water hammer. This is achieved by reducing the outlet pressure through the quiet valve to an acceptable level. The use of the quiet valve also reduces the risk of burst hoses. Maximum inlet pressure is 1400 kPa with 1400 kPa maximum temperature at 65°C. Outlet pressure is 400kPa at 700 kPa inlet. Flow rate is 20 litres per minute at 700 kPa inlet.
Features
- Compact design
- Flow rate is 20 litres/min at 700 kPa inlet
- Outlet pressure is 400kPa at 700 kPa inlet
- Top connection is 20mm (3/4") BSP female
- Outlet connection is 20mm (3/4") BSP male
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific QPL-20
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or contact us. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| Watermark |
