2NVPLV

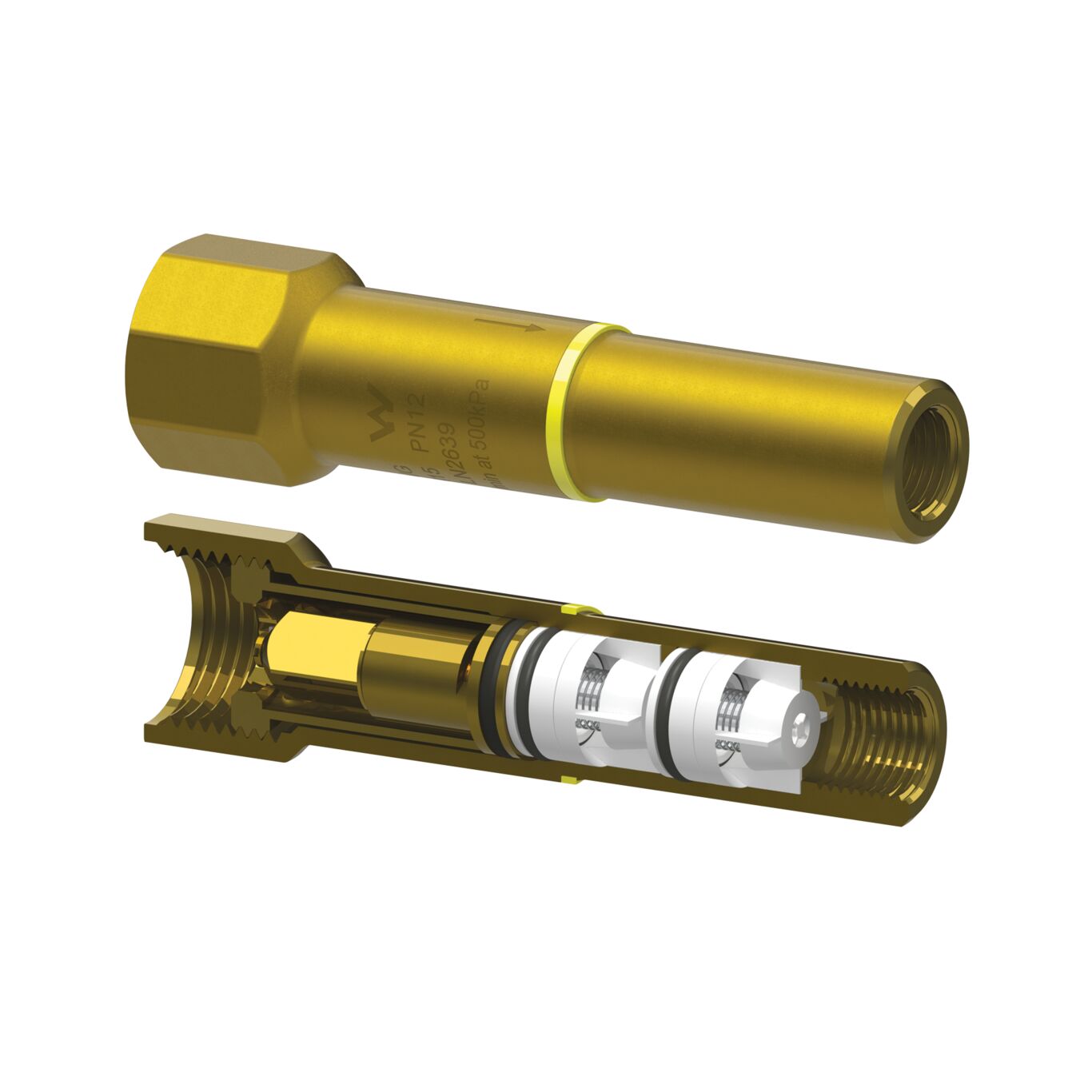

Dual Check and Pressure Limiting Valve, 15mm Female Inlet x 6mm Female Outlet
The new combination valve 2NV-PLV is the latest addition to AVG’s back flow valve range and incorporates dual back flow protection with an integral adjustable pressure limiting valve. The valve has been developed predominantly to cater for the coffee machine and water filter market but is suitable for all point of use applications requiring dual back flow and pressure protection all in one compact package.
Features
- Ideal for water filter and coffee machine installations
- Adjustable pressure limiting function 350kPa or 500kPa (factory set 350kPa)
- 350kPa yellow pressure indicator ring fitted and includes optional 500kPa white indicator ring
- Dual check valves
- Reduced pressure and flow helps reduce water hammer and most pipe noises
- Suitable for all point of use applications requiring back flow and pressure protection in one compact package
- DZR brass
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 2NVPLV
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or contact us. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| Watermark |
