DRVM

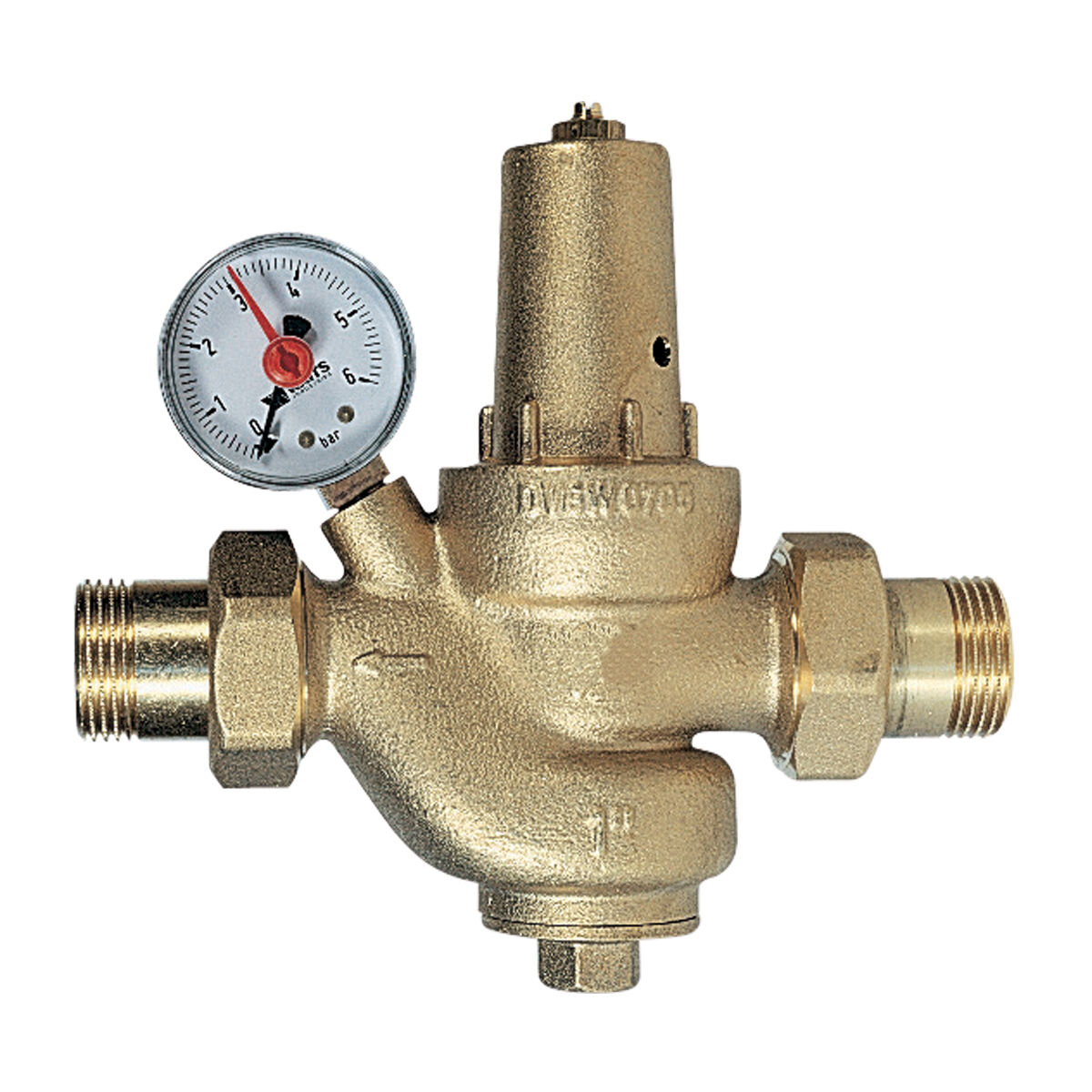

[SPECIAL ORDER] Diaphragm Pressure Reducing Valve, Reduced Pressure Range: 150-600kPa, DN15-DN50
Series DRVM pressure reducing valves are devices capable of reducing the pressure of the fluid downstream to a desired level and keeping it constant even in the presence of major variations in the flow rate and/or pressure upstream, by modifying its pressure drops. Series DRVM is a diaphragm pressure reducing valve with compensated seat and complete with unions. Includes CW617N brass body and cap, stainless steel strainer, and polymer valve seat. Maximum inlet pressure is 25 bar; with adjustable downstream pressure: 1.5÷6 bar. Valve can be used for water, air and neutral gases up to 60°C, in accordance to DVGW up to 30°C. Pressure drops less than 1.3 bar at characteristic flow rate. Includes M1-ABS50 series pressure gauge (scale 0-6).
Features
- Maximum inlet pressure is 25 bar
- Polymer valve seat
- Includes pressure gauge (scale 0-6 bar) series M1-ABS50
- Stainless steel strainer
- CW617N brass body and cap
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific DRVM
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or contact us. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
Watermark |
