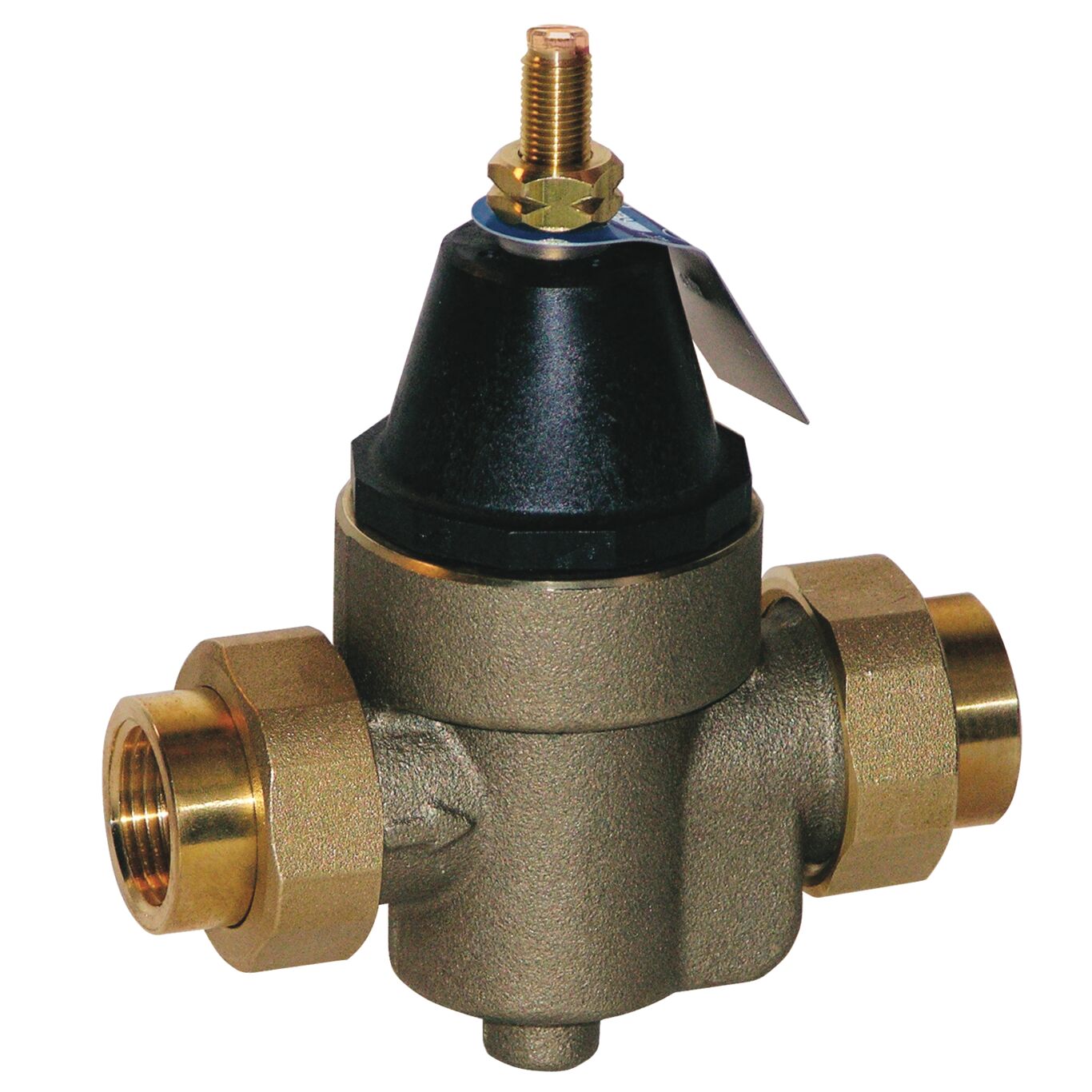

LFN45B-G-AUS
Water Pressure Reducing Valve, Reduced Pressure Range: 172kPa-517kPa, DN15-DN50
Series LFN45B-G-Z3-AUS water pressure reducing valves are designed to control and reduce the incoming water pressure to a compliant level to protect plumbing system components and assist in reducing water consumption. The LFN45B-G-Z3-AUS features Lead Free* construction to comply with Lead Free* installation requirements. This series is suitable for water supply pressures up to 2760/2070 kPa and come with factory pre-set at 500 kPa. The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply.
Features
- Lead Free cast copper silicon alloy body construction
- Integral stainless steel strainer
- Thermoplastic seat & cage
- Bypass feature controls thermal expansion pressure
- Sealed spring cage on all models for accessible outdoor or pit installations
- Serviceable in line
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFN45B-G-AUS
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or contact us. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| Watermark |
