P60M1-AUS

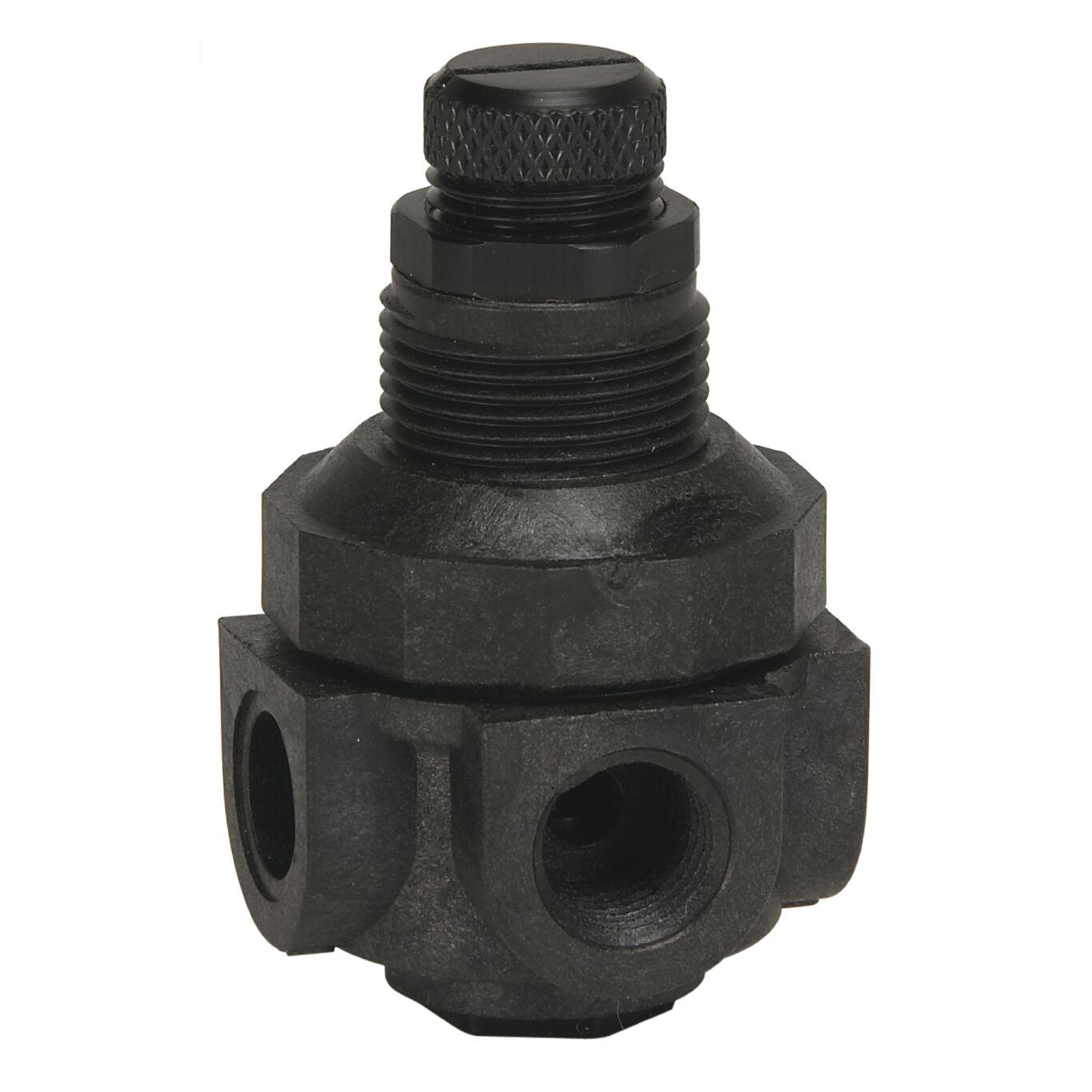

Miniature Plastic Water Pressure Regulators, DN8
Series P60M1 miniature plastic water pressure regulators are used in general purpose and OEM applications to regulate pressure in systems that require a constant downstream and accurate flow performance. They have a thermoplastic body construction with connections in a straight through or 90 degree inlet to outlet design, all external components of NSF approved thermoplastics, all internal rubber components (disc, diaphragm, and seals) of FDA grade elastomers, all internal metal components of 300 series stainless steel, and a bottom clean-out plug for service. Options include gauge port and quick disconnect for plastic tubing. Series P60M1 is compact and lightweight with a high flow capacity. It is also suitable for deionized water applications. Maximum Working Pressure: 300psi (20.7 bar).
Features
- Corrosion resistant thermoplastic body
- Compact design and lightweight construction
- All external components are made of NSF approved thermoplastics
- All internal rubber components such as disc, diaphragm and seals are all FDA grade elastomers
- All internal metal components in contact with fluid are of 300 series stainless steel
- Straight through or 90 degree inlet to outlet option (suffix 4 option)
- High capacity
- Bottom clean-out plug for service
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific P60M1-AUS
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or contact us. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| Watermark |
