415-AUS
[SPECIAL ORDER] Steam Safety Valves, DN20-DN40

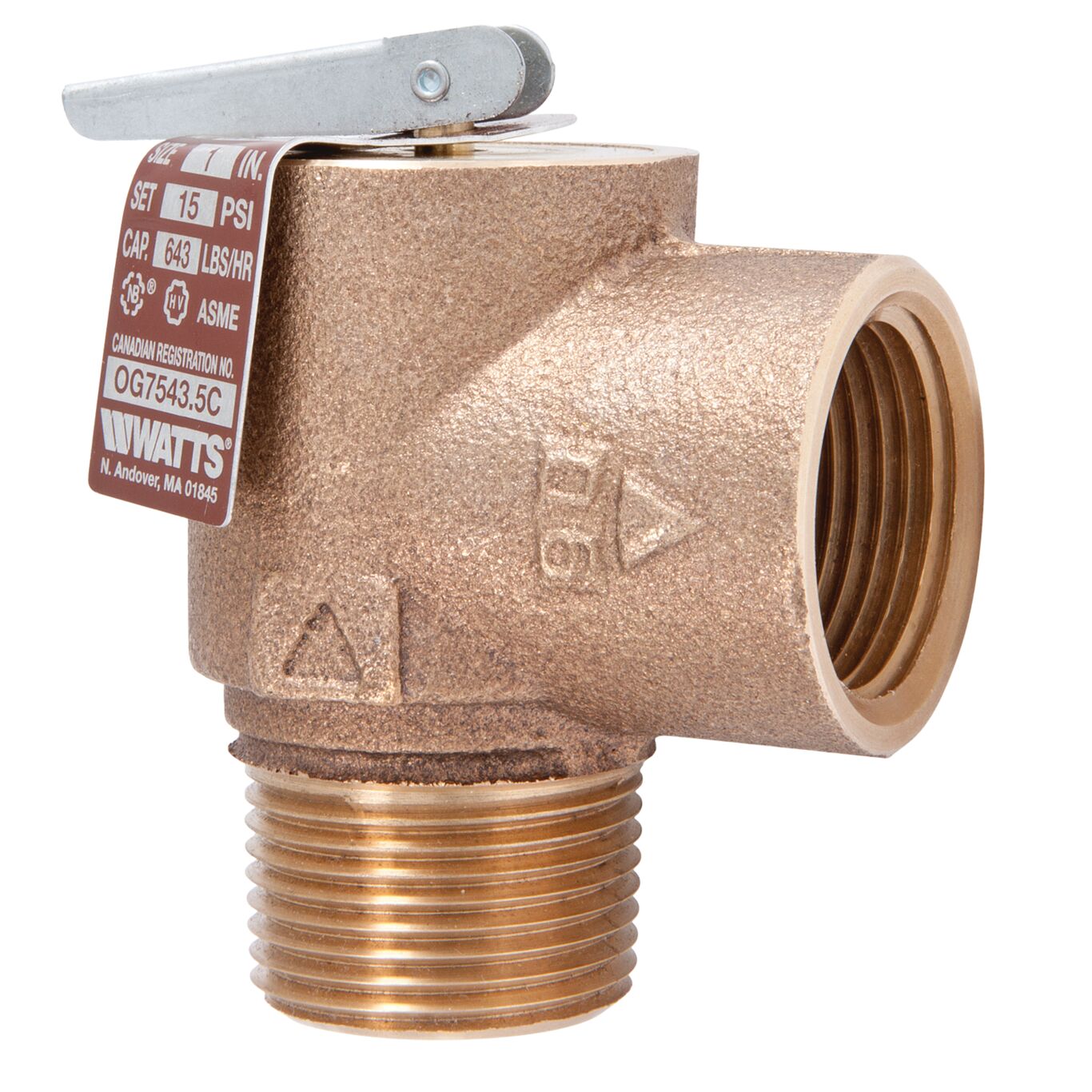

Series 415-AUS steam safety relief valves are used in commercial and industrial applications for low-pressure, steam heating boilers and process equipment. They have a brass body (size 1/4 in.) or a bronze body (sizes 1, 1-1/4, 1-1/2 in.) construction with NPT threaded male inlet and threaded female outlet (drain) connection, stainless steel spring, top-guided stem, and non-stick Teflon disc-to-metal seating. Model 415SC has satin chrome finish. Model 415L has low pressure setting at 8psi (55 kPa) for pressure cookers and steam cleaning equipment. ASME Section IV at 15psi (103 kPa) set point.
Features
- Positive shut off
- High capacity
- Non-sticking Teflon disc
- NPT threaded male inlet x threaded female outlet (drain) connection
- Seat located above drain
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 415-AUS
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or contact us. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| Watermark |
